Network token analytics is the discipline of measuring, segmenting, and optimising the performance of network-tokenised transactions against their PAN-based equivalents — giving payments and finance teams a ground-truth view of what tokenisation is actually delivering. Without this analytics layer, you are flying blind on one of the most consequential infrastructure decisions in your payments stack.
Network tokenisation is no longer an advanced feature reserved for Tier-1 merchants. Network tokenisation is scaling fast — tokenized transactions are projected to double by 2029, jumping from 283 billion in 2025 to 574 billion, according to Juniper Research. With Visa and Mastercard aiming for near-universal token adoption by 2030, this is the future of payments — not just a nice-to-have.
But here is what most fintech and payments teams discover only after they have deployed network tokens: the token infrastructure is live, the PSP is reporting "network tokenisation: enabled", and the board deck shows the slide about improved security and higher auth rates. What nobody can actually tell you is how much of your transaction volume is tokenised, which segments are benefiting, where the PAN-to-token conversion gap lives, or whether the promised authorisation rate uplift is actually materialising at your scale, your card mix, and across your acquirer routing logic.
That gap — between having tokens and being able to measure tokens — is a data engineering and analytics problem. And it is a fixable one.
Why Most Teams Cannot See Their Token Performance
A pattern we see repeatedly in our work with growth-stage fintech and e-commerce businesses: the payment data that lands in the warehouse is structurally incomplete for token performance analysis. The raw transaction records arriving from the PSP, gateway, or acquiring bank typically carry a transaction ID, an amount, a status, and a card scheme — but the token-level metadata (token reference ID, token lifecycle event type, whether the transaction used a network token or a PAN, the reason for any credential update) is either missing entirely, stored in a separate system, or buried in a webhook payload that nobody has modelled.
The result is that the authorisation rate the team is measuring is a blended rate — a single number that averages across tokenised and non-tokenised transactions, across all card types, acquirers, and geographies. That number is not actionable. According to Visa, merchants using network tokens see an authorisation rate uplift of around 2%, while some processors have recorded an uplift of 2–3% for most merchants — with subscription-based merchants benefiting most. But a 2–3% uplift averaged across your entire book means nothing if you cannot see which cohort is receiving it and which cohort is not.
On average, 15% of recurring payments are declined due to outdated card details — such as expired cards and reissued account numbers. For many merchants, particularly those processing recurring transactions, these failed payments can disrupt cash flow, increase customer churn, and lead to costly recovery efforts. If you cannot segment your decline reasons by credential type, you cannot quantify that exposure — let alone fix it.
The other issue is token lifecycle data. The dynamic nature of network tokens allows automatic updates, ensuring seamless transactions even when card details change, which is especially beneficial for recurring payments. But "automatic updates" still generate events — token provisioning, credential refresh, lifecycle expiry — and those events are data. If they are not being captured, enriched, and surfaced in a model that your payments or finance team can query, you are losing signal that directly explains authorisation outcomes.
📺 Watch: ZEBEC Token Analysis: ZBCN Real-Time Payment Streaming Set To Trigger Price Action?
What Good Network Token Analytics Actually Looks Like
The analytics layer for network tokenisation sits on top of your data warehouse and requires at minimum four modelled datasets:
1. Transaction-level token classification. Every transaction record needs a field that reliably tells you whether it was processed against a network token or a PAN. This sounds obvious. In practice, it requires joining your PSP transaction feed to your token vault events (or the token metadata returned in the authorisation response), normalising across schemes (Visa Token Service and Mastercard Digital Enablement Service have slightly different data structures), and resolving edge cases where the credential type is ambiguous or missing. This is a dbt modelling problem, not a BI problem — the classification logic belongs in the semantic layer, not in a dashboard formula.
2. Authorisation rate by credential type, segmented. Once you have reliable token classification, you can build the core performance comparison: token auth rate vs. PAN auth rate, broken down by card scheme, issuer country, transaction type (customer-initiated vs. merchant-initiated), and acquirer. Network tokenisation now drives 2–7% higher authorisation rates and a 40–60% reduction in false declines at the aggregate level — but the variance across segments is what matters operationally. A subscription fintech serving cardholders across multiple markets will see dramatically different token uplift in markets where issuer participation is high versus markets where it is nascent.
3. Token coverage rate. This is the percentage of eligible transactions that are being processed with a network token rather than a PAN. It is one of the most important operational metrics in your payments stack and one of the least commonly tracked. A low token coverage rate tells you that your token provisioning flow is broken, that your PSP is not routing correctly, or that a segment of your customer base is not being tokenised at onboarding. Visa processes 150 billion tokenised transactions annually (2025) — the infrastructure exists at scale, but individual merchants frequently leave coverage gaps undetected for months.
4. Decline reason analysis by credential type. Soft declines driven by stale credentials ("Do Not Honour", "Insufficient Funds" where the real cause is an expired PAN) look different from hard declines. Segmenting your decline reason codes by token vs. PAN surfaces the true cost of non-tokenised credentials. This is the analysis that converts a tokenisation conversation from a security discussion into a revenue discussion — one that a CFO or Head of Payments can act on immediately.
If you want to see how this kind of payments intelligence layer fits into a broader operational analytics programme, explore how Fintel Analytics approaches payment data engineering — we work with growth-stage fintech and payments businesses to design and deliver exactly this kind of solution.
The Data Engineering Challenges You Will Actually Hit
Building network token analytics is not complicated in theory. In practice, there are three engineering problems that slow almost every team down.
Multi-PSP token data normalisation. A Token Service Provider is typically processor-agnostic — it issues and manages tokens at the network level, making them usable across multiple processors and acquirers. This neutrality gives businesses flexibility to route transactions through different processors without having to re-tokenise customer data. But the analytics consequence is that your token metadata arrives in different schemas from different providers. If you are running a multi-PSP setup — which is increasingly common at Series A and beyond — you will need a normalisation layer that maps each provider's token fields to a consistent model before any performance comparison is meaningful. Doing this in raw SQL queries inside a BI tool is fragile. It belongs in dbt models with documented lineage and tested against known reference transactions.
Scheme rule differences. Visa allows token sharing between affiliated merchants through Token Reference IDs. Mastercard requires separate tokens for each merchant entity, even within the same corporate group. These structural differences affect how you model token coverage and how you attribute performance uplift — particularly if you operate multiple merchant IDs under a single commercial entity. Getting this wrong produces coverage rates that look artificially high or low depending on how you are counting.
Historical PAN-to-token migration analysis. Most businesses do not tokenise their entire credential vault on day one. Tokens are provisioned progressively — at new card saves, at renewal events, and through active migration campaigns. Your analytics model needs to handle the fact that the same customer may have transacted with a PAN for twelve months and then with a token for the following six. Cohort-level before-and-after analysis (controlling for card mix, vintage, and transaction type) is the only rigorous way to measure uplift and attribute it to tokenisation rather than to other changes in your payments stack that happened over the same period.
A Series A payments company we worked with had been live with network tokens for eight months before engaging us. Their PSP dashboard showed a headline auth rate that looked healthy. When we modelled the transaction data properly — separating tokenised from non-tokenised, controlling for scheme and issuer, and isolating merchant-initiated recurring transactions — we found that their token coverage on legacy stored credentials was under 40%, and their PAN-based recurring transactions were declining at nearly double the rate of their tokenised equivalents. The revenue impact was quantifiable and significant. The fix — a structured credential migration campaign combined with corrected token provisioning logic — was not a technology rebuild. It was an analytics discovery that enabled a targeted operational response.
For further context on how payment performance data fits into a broader payments intelligence stack, see our post on Authorization Rate Analytics: Fix Declining Payments in 2026 and Payment Operations Analytics: Fix Blind Spots in 2026.
Building the Token Analytics Stack: What to Prioritise First
If your team is starting from scratch, here is the sequence that actually ships:
Week 1–2: Audit your raw token data availability. Before modelling anything, confirm what token metadata your PSP and gateway are returning in their API responses and webhooks. Not all PSPs expose the same fields. Some require you to opt in to extended transaction data. Identify gaps before you write a single line of SQL.
Week 3–4: Build the credential type classification model in dbt. Create a staging model that joins your transaction feed to your token event log and produces a clean, tested credential_type field (network_token, PAN, unknown) on every transaction. Add data tests to flag transactions where the classification cannot be resolved. This model becomes the foundation for every downstream metric.

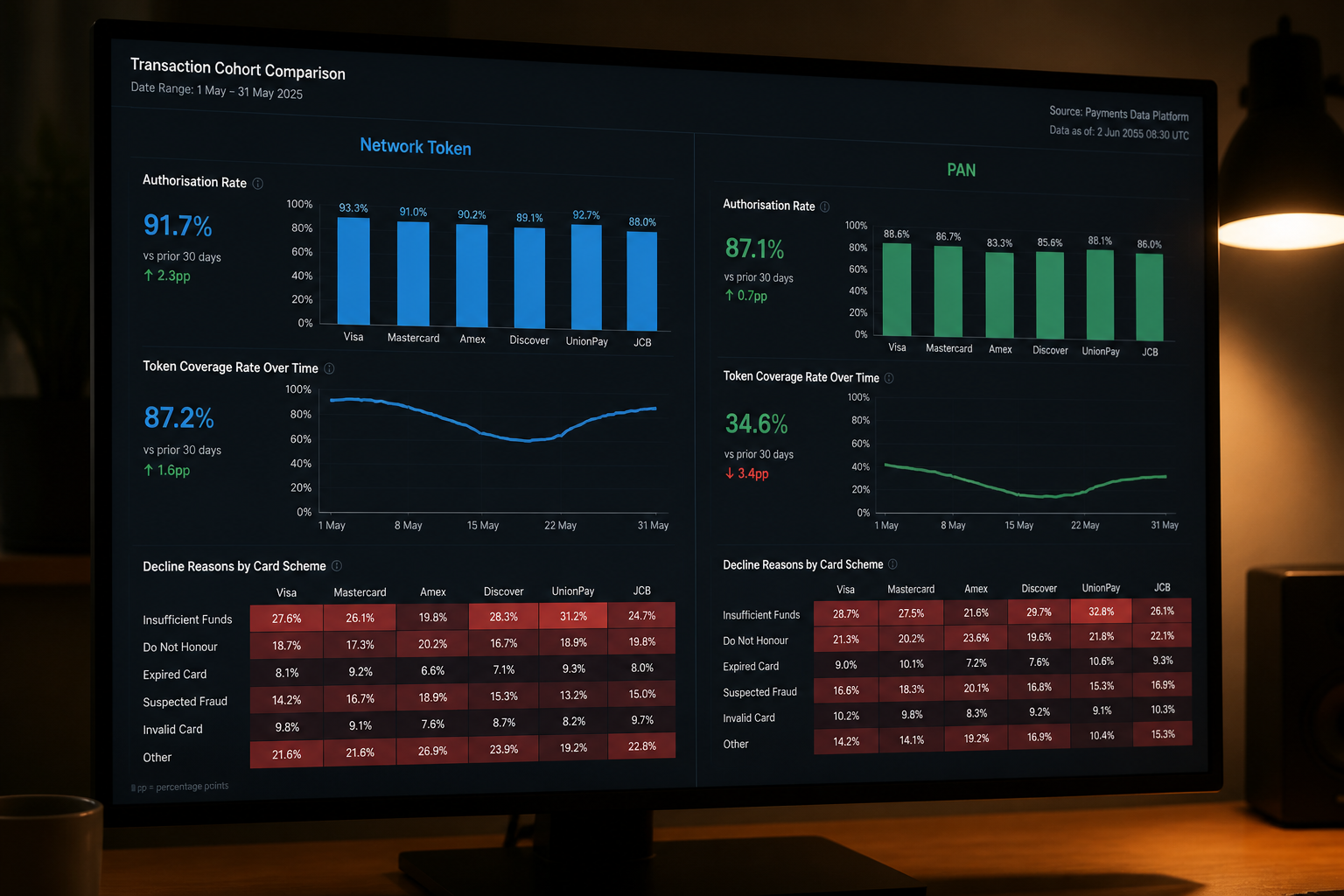

Week 5–6: Build core performance marts. Auth rate by credential type, segmented by scheme, transaction type, and acquirer. Token coverage rate by customer cohort and card vintage. Decline reason distribution by credential type. These are the three dashboards your Head of Payments and your finance team will actually use.
Week 7–8: Build the alerting layer. A drop in token coverage rate — say, from 78% to 65% over 48 hours — is a signal that something has broken in your provisioning flow. This is not something you want to discover at the end of a month when your auth rates have already taken the hit. An automated alert on coverage rate thresholds costs almost nothing to build and prevents meaningful revenue leakage.
This is the same approach we took with a global payments business whose tokenisation infrastructure was live but analytically invisible. The entire modelling and dashboard build completed in under six weeks, and the team moved from "we know tokens are good" to "we know exactly where our tokens are performing, by scheme, by market, and by customer segment."
Frequently Asked Questions
Q: What is network token analytics and why does it matter for fintech?
A: Network token analytics is the practice of measuring the performance of network-tokenised payment credentials versus standard PAN-based credentials — tracking metrics like token coverage rate, authorisation rate uplift, and decline reason distribution by credential type. It matters because tokenisation is now a significant driver of payment performance, and without proper analytics, businesses cannot verify whether the expected uplift is materialising or identify where their provisioning is incomplete.
Q: How much authorisation rate uplift should I expect from network tokens?
A: Industry data suggests a typical uplift of 2–7% in authorisation rates for network-tokenised transactions versus PAN-based equivalents, with the upper end of that range driven by false decline reduction. Subscription and recurring payment merchants tend to see the greatest benefit, given the frequency of card credential staleness in those transaction types. Your actual uplift will depend on your card mix, issuer participation rates in your target markets, and your starting token coverage rate.
Q: What data do I need to measure network token performance?
A: At minimum, you need: a transaction-level credential type field (token vs. PAN), token lifecycle event data (provisioning, updates, expirations), acquirer response codes segmented by credential type, and customer-level token coverage history. This data typically needs to be sourced from your PSP API, your token vault, and your gateway webhook feeds — and joined and normalised in a data warehouse before any meaningful analysis is possible.
Q: What is token coverage rate and how do I track it?
A: Token coverage rate is the percentage of eligible transactions (typically card-not-present, credential-on-file transactions) that are processed using a network token rather than a raw PAN. It is calculated by dividing tokenised transaction volume by total eligible transaction volume for a given segment and time period. A declining coverage rate is a leading indicator of provisioning failures or routing misconfiguration — and should be monitored with automated alerting, not just reviewed in monthly reports.
Q: Can I build network token analytics without a dedicated data engineering team?
A: Not reliably. The core challenge — normalising token metadata across PSPs, modelling credential type classification, building tested and documented dbt models — requires data engineering skills. A BI analyst working in a dashboard tool without a proper semantic layer will produce metrics that break when your PSP updates its API schema or when you add a new acquiring relationship. The investment in a properly engineered data model pays for itself in the first month of operational use.
Most fintech and payments teams know that network tokens improve authorisation rates — but very few can prove it with their own data, segment the benefit by cohort, or catch a coverage regression before it hits revenue. At Fintel Analytics, we have built payment intelligence stacks for growth-stage businesses across fintech, e-commerce, and financial services — from the raw data model through to the operational dashboards that payments and finance teams use every day. If your tokenisation infrastructure is live but analytically invisible, that is exactly the problem we exist to solve.
