Event-driven data architecture for fintech is a design pattern where every significant state change — a payment initiated, a KYC check completed, a wallet balance updated — is captured as an immutable event and made available for downstream analytics, alerting, and reporting in near real time. Done correctly, it replaces fragmented batch jobs and polling-based integrations with a single, reliable source of truth for what has happened across your platform. Done poorly — and most early-stage fintechs do it poorly — it becomes a sprawling mess of out-of-order events, missing records, and dashboards that nobody trusts.
If your team is running a payments product, a neobank, a BNPL service, or any financial platform that processes transactions at scale, the architecture decisions you make around event data will determine whether your analytics function is a competitive advantage or a permanent liability. This guide is written for founders, CTOs, and engineering leads who are either designing this from scratch or inheriting something that is already breaking.
Why Most Fintech Data Stacks Fail at the Event Layer
The failure mode is almost always the same. In the early days, a fintech builds its first data pipeline by reading directly from the application database — a nightly dump into a spreadsheet, a Postgres replica feeding a BI tool, or a cron job that exports a CSV every morning. It works. Until it doesn't.
As transaction volume grows, those read-heavy batch jobs start contending with production traffic. The replica falls behind. The CSV export misses records during a deployment window. Finance notices the numbers don't match what's in the admin portal. The engineering team patches it with another job. Then another. Within twelve months, you have five overlapping pipelines pulling from three different sources, and no single authoritative answer to "how many successful payments did we process yesterday?"
A pattern we see repeatedly at Fintel Analytics: companies come to us after their reconciliation process has become a weekly fire drill. The underlying cause is almost never a bad reconciliation query — it is a data architecture that was never designed to capture events reliably in the first place. The hardest wallet problems appear after launch: reconciliation, settlement visibility, multi-provider routing, and compliance scaling. Those problems are downstream symptoms of upstream architecture decisions that were made too quickly.
The business cost is quantifiable. In our work with a Series A payments company, a reconciliation process that took 30–50 minutes to run every morning was rebuilt as an automated SQL pipeline — it now completes in under 3 seconds. The time saving was almost beside the point. The real value was that finance finally trusted the output. When your reconciliation takes 45 minutes and still produces disputed numbers, your finance team is not doing reconciliation — they are doing damage control.
📺 Watch: Event-Driven Architecture: Explained in 7 Minutes!
What an Event-Driven Data Architecture Actually Looks Like

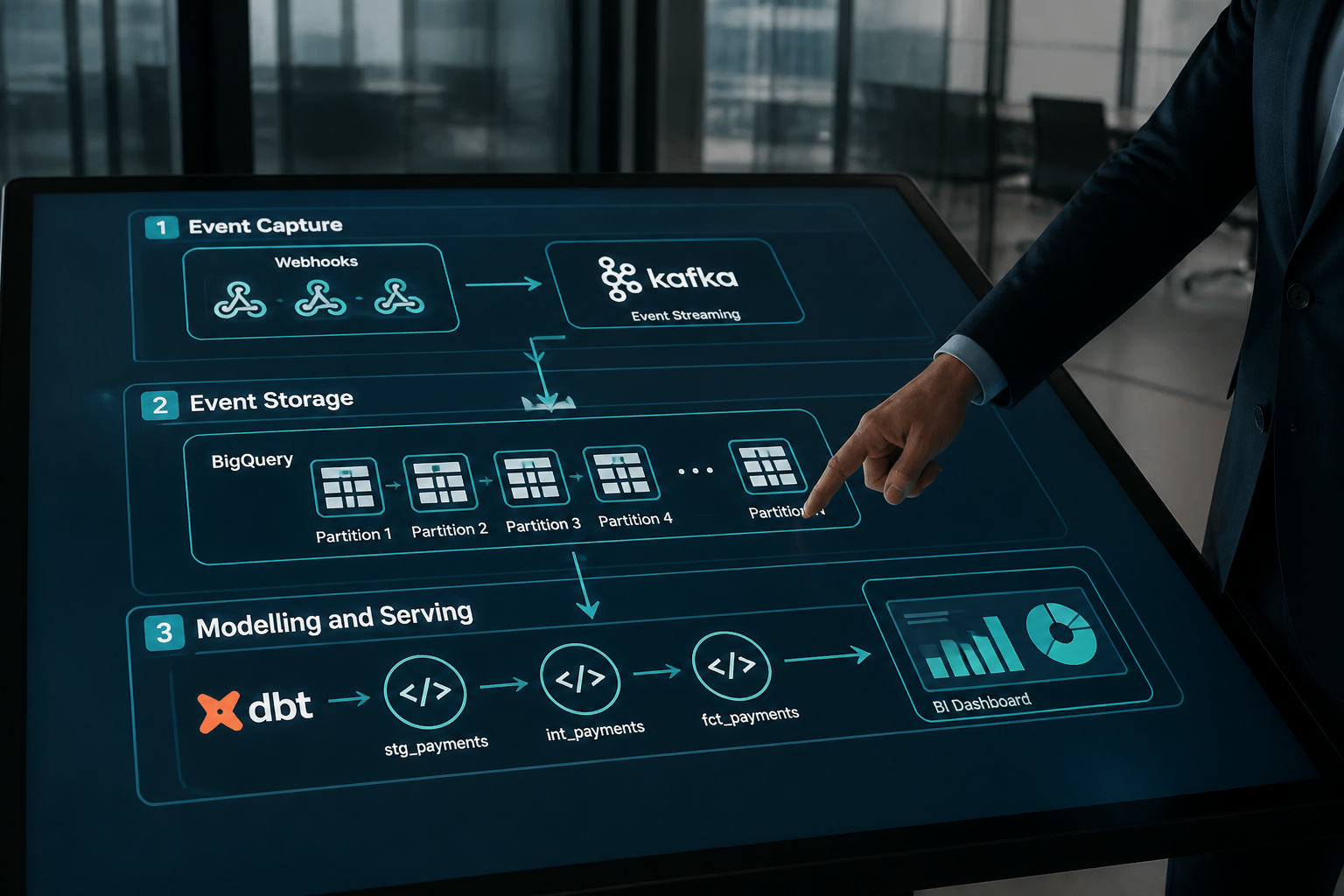

At its core, an event-driven data architecture has three layers:
1. The Event Capture Layer
Every meaningful state transition in your platform emits a structured event. A payment moving from pending to authorised to settled is three events, not one row with an updated status column. Each event is immutable — it records what happened, when it happened, and in what context. This is the foundational shift in thinking: your database is a representation of current state; your event stream is the full history of how you got there.
In fintech, common event sources include application-level domain events published to a message broker (Kafka being the most common at scale), webhook payloads received from PSPs, card networks, and banking partners, and CDC (change data capture) streams from your operational database using tools like Debezium.
2. The Event Storage and Processing Layer Raw events land in a streaming layer or an event store — typically Apache Kafka, AWS Kinesis, or Google Cloud Pub/Sub depending on your cloud stack. From here, events are consumed by a data platform: written to your cloud data warehouse (BigQuery, Redshift, or Snowflake), where they form the immutable ledger of what your platform has done. Critically, raw events are stored before any transformation. This is non-negotiable. You will need to replay them.
3. The Modelling and Serving Layer Raw event tables are not useful to a finance analyst or a product manager. They need to be modelled. This is where dbt (data build tool) becomes essential — transforming raw event streams into clean, typed, business-friendly models: one row per payment with its full lifecycle, one row per customer with their current state derived from event history, one row per settlement batch matched against its corresponding authorization events. These dbt models feed your semantic layer and BI tooling (Holistics, Looker, or similar) and provide the single source of truth that every team queries.
The industry is rapidly abandoning legacy synchronization methods in favour of more responsive models. The integration of webhooks in banking and fintech serves as a primary catalyst for this transition, enabling a structural move toward a robust event-driven architecture.
If you want to understand how this connects to the broader problem of balance intelligence — where ledger entries and event records need to reconcile cleanly — see our post on Fintech Ledger Analytics: Fix Broken Balance Intelligence in 2026.
The Four Failure Patterns That Break Fintech Event Pipelines
Building an event-driven architecture is not inherently difficult. Getting it wrong in specific, expensive ways is where most teams run into trouble. These are the four failure patterns we encounter most often in the field.
Failure Pattern 1: Treating webhooks as reliable delivery Webhooks from PSPs and banking partners are fire-and-forget. Your endpoint returns a 200, the provider considers the event delivered. But your endpoint timed out during a deployment. Or the payload schema changed without notice. Or the event arrived out of order — a settlement event before its authorisation. If your pipeline assumes webhook delivery is complete and ordered, you will have silent gaps in your data that surface as reconciliation breaks days later.
The fix: treat incoming webhooks as untrusted, unordered input. Write every raw payload to an immutable store immediately — before any processing. Use idempotency keys to handle duplicates. Build a completeness check that identifies missing events by comparing expected sequences against received sequences. To prevent duplicate processing during retries — a critical requirement in fintech to avoid double-charging — webhooks are designed to support idempotency keys, allowing the consumer to safely ignore duplicate payloads.
Failure Pattern 2: Over-transforming at ingestion A common mistake is to apply business logic at the point of ingestion — normalising, enriching, and filtering events before they hit storage. This feels efficient. It is fragile. When business logic changes (and it always changes), you cannot replay historical events through the new logic without also maintaining the old pipeline to backfill. Raw events must land raw. Transform downstream, in dbt, where transformations are versioned, tested, and reproducible.
Failure Pattern 3: No event schema governance In a fast-moving engineering team, event schemas drift. A field that was a string becomes a float. A nullable field starts arriving as an absent key. An event that used to fire on every state transition now only fires on terminal states. Without a schema registry and enforced contracts, your data models start silently breaking. The pipeline keeps running. The numbers quietly become wrong. Finance signs off on a number that is 8% understated because a fee field changed type three sprints ago.
This connects directly to the data contract pattern: every event should have a defined schema, a declared owner, and a downstream consumer list. A schema registry (AWS Glue Schema Registry, Confluent Schema Registry, or a custom implementation) enforces this at the point of publication.
Failure Pattern 4: Building for today's volume The most expensive architectural mistake is building a pipeline that works at current volumes but cannot survive growth. Full table scans on raw event tables that are 10 million rows today will be catastrophic at 500 million. BigQuery partitioning and clustering strategies, Kafka consumer group design, and dbt model materialisation choices all need to be made with 10x headroom in mind. In our work with a global fintech, rapidly growing cloud costs from inefficient queries — teams watching their BigQuery bill triple quarter-on-quarter — was a direct consequence of pipelines built without query governance during the early-growth phase.
If you are looking to design or audit your current event pipeline architecture, explore how Fintel Analytics approaches this — we work with fintech and payments businesses globally to design and deliver exactly this kind of solution, from event capture through to governed BI.
How to Design the Event Schema That Actually Scales
Event schema design is where architecture decisions compound over time — good choices here make everything downstream easier; bad choices create permanent technical debt. These are the principles we apply in every engagement.
Use a consistent envelope format. Every event should carry the same top-level fields regardless of type: event_id (UUID, for idempotency), event_type (namespaced string, e.g. payment.authorisation.succeeded), occurred_at (the time the event happened in your system, not when it was received), entity_id (the ID of the object this event relates to), and schema_version. Business-specific fields go in a typed payload nested within this envelope. This structure allows your ingestion layer to be generic — a single function that routes any event to the correct destination — while your dbt models parse the typed payload per event type.
Separate business events from technical events. A Kafka consumer offset commit is not a business event. A payment state transition is. Your data warehouse should only receive business events — the operational noise belongs in your logging and monitoring stack. Mixing them creates volume problems and makes your models harder to reason about.
Design for temporal queries from day one. Analysts need to ask "what was the state of this payment at 14:32:07 on 15 March?" — not just "what is the current state?" An event log answers this naturally; a mutable status column does not. Ensure your event schema captures occurred_at at the source-of-truth system, not the processing timestamp. For payments, this means the timestamp on the card network response, not the timestamp your application received the webhook.
Version your schemas and maintain a compatibility matrix. When you must change a schema, the old consumers need time to migrate. Support backward-compatible additions (new optional fields) without a version bump; require a version bump for field type changes, removals, or semantic redefinitions. Publish the compatibility matrix in your internal documentation. This sounds like overhead. It saves you from the scenario where an unannounced field removal breaks your dbt pipeline over a bank holiday weekend.
For fintech teams dealing with the downstream consequence of poorly structured event data — specifically around multi-currency financial flows — our post on FX Exposure Analytics for Fintech: Stop Flying Blind on Currency Risk covers how event-level currency data should be modelled for reliable exposure reporting.
What a Production-Grade Fintech Event Stack Looks Like in 2026
Based on delivery work across payments companies, neobanks, and embedded finance platforms, this is the reference architecture we most commonly recommend and implement for Series A and B fintechs operating at meaningful scale:
Event Capture: Domain events published to Apache Kafka (self-hosted or Confluent Cloud) from application services. Incoming third-party webhooks captured by a lightweight ingestion service that writes raw payloads to an S3/GCS bucket before acknowledging delivery. CDC streams from Postgres or MySQL using Debezium for operational data that is not yet event-sourced.
Event Store: All raw events land in BigQuery as append-only tables, partitioned by occurred_at date and clustered by event_type and entity_id. Kafka Connect or a custom consumer writes from Kafka topics to BigQuery. Webhook payloads and CDC events land via separate pipelines using the same schema envelope standard.
Transformation: dbt models in three layers — raw (typed, no business logic), staging (normalised, enriched, idempotent deduplication applied), and mart (business-facing models: payment lifecycle, customer state, settlement matching). All models are tested using dbt's built-in testing framework plus custom SQL tests for business-rule assertions.
Serving: A semantic layer (Holistics or Looker) sits on top of the dbt-built BigQuery tables and exposes governed metrics — authorisation rate, settlement lag, fee yield, wallet balance history — that every team queries from the same definition. Finance, risk, product, and operations each have dashboards built for their workflow, all drawing from the same underlying models.
Observability: dbt model run logs feed a monitoring dashboard that tracks row counts, null rates, and freshness SLAs. Anomaly alerts fire when expected event volumes fall outside their historical range — giving the data team a signal before the business notices the gap. An automated alerting system of this kind, in our experience delivering it for a treasury team at a growth-stage fintech, gave leadership real-time visibility into provider risk for the first time, reducing funding misses and giving a quantifiable measure of capital efficiency.
The global webhook management platform market was valued at $1.8 billion in 2025 and is projected to expand to $6.7 billion by 2034, advancing at a compound annual growth rate of 15.7%. That growth reflects how central reliable event infrastructure has become to financial services operations — and how much investment is flowing into solving exactly the problems described in this post.
Frequently Asked Questions
Q: What is event-driven data architecture in fintech?
A: Event-driven data architecture is a design approach where every significant state change on your platform — a payment authorised, an account created, a transfer settled — is captured as an immutable, timestamped event and made available for analytics and operational processing in near real time. Rather than querying a mutable application database, your analytics stack is built on an append-only event log that captures the full history of platform activity. In fintech, this is the foundation for reliable reconciliation, real-time reporting, and audit-compliant data lineage.
Q: How is event-driven architecture different from a standard ETL pipeline?
A: A standard ETL pipeline reads the current state of your operational database on a schedule — typically hourly or nightly — and overwrites or appends to your data warehouse. This means you lose the intermediate states between runs, you cannot answer temporal queries accurately, and late-arriving or corrected records are hard to handle cleanly. An event-driven architecture captures state transitions as they happen, giving you a complete, ordered history that can be replayed, reprocessed, and queried at any point in time.
Q: What tools do fintech teams typically use to build event-driven data pipelines?
A: The most common production stack for Series A–B fintechs combines Apache Kafka or AWS Kinesis for event streaming, BigQuery or Snowflake as the event store and data warehouse, dbt for transformation and modelling, and a governed BI layer such as Holistics or Looker for serving. Webhook ingestion typically involves a lightweight capture service writing raw payloads to cloud storage before processing. Schema governance is handled via a schema registry — either Confluent, AWS Glue, or a custom implementation.
Q: Why do fintech event pipelines break at scale?
A: The most common failure modes are: assuming webhooks are reliably delivered and ordered (they are not); applying business logic at ingestion rather than in versioned dbt models; allowing event schemas to drift without governance; and building pipelines optimised for current data volumes without headroom for growth. Any one of these can produce silent data quality failures — numbers that look plausible but are wrong — that surface as reconciliation breaks or disputed reporting weeks later.
Q: When should a fintech team invest in a proper event-driven data architecture?
A: The trigger is almost always one of three things: your reconciliation process is taking hours and still producing disputed results; your dashboards show different numbers depending on which system you query; or your cloud data costs are climbing faster than your transaction volume. Any of these is a sign that your current pipeline architecture is not scaling with your business. In practice, the right time to invest is before you hit these problems — ideally at Series A, when you have the engineering capacity to build it properly and the transaction volume to justify it.
Building a reliable event-driven data architecture is not a one-sprint project — it is a series of deliberate decisions about schema design, ingestion patterns, transformation strategy, and observability that compound over time. At Fintel Analytics, we have delivered this kind of infrastructure for payments companies, neobanks, and embedded finance platforms globally — from the initial event capture design through to governed dbt models and production BI dashboards. If your team is spending more time debugging pipeline discrepancies than acting on the insights they should be producing, that is a solvable problem, and the cost of solving it is a fraction of what the current situation is costing you in engineering time, finance overhead, and missed decisions.
